For Work 3LCD Laser Light Source Epson EB-L30000UNL

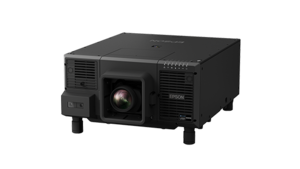

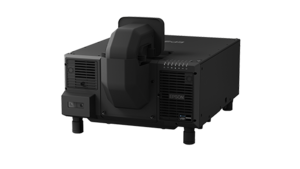

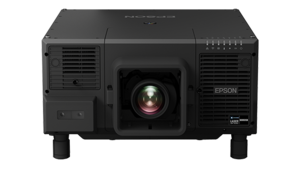

Epson EB-L30000UNL Laser WUXGA 3LCD Projector with 4K Enhancement

WORLD’S LIGHTEST & SMALLEST 30,000 LUMENS 3LCD LASER PROJECTOR.*

Presenting spectacular image quality with outstanding levels of colour brightness, the Epson EB-L30000UNL is among the world’s lightest and smallest 30,000 lumens 3LCD projector with 4K quality lens. It is extremely reliable with superior heat resistance and 20,000 hours** of maintenance-free use on its laser light source. Project any and every way you want with its flexible 360° rotation and adjustable tilt and allow its variety of lenses to cater to all your projection needs!

      • White and Colour Brightness at 30,000 lumens
      • WUXGA (1920 x 1200) Resolution
      • Inorganic LCD Panel and Phosphor Wheel
      • HDBaseT Connectivity
      • In Built camera for Auto Colour Calibration & Geometry Correction for Stacking



Vivid Images Even in Large Spaces
Epson EB-L30000UNL is packed with 30,000 lumens and projects with a high contrast ratio. Guaranteed to produce bright images even in large venues, it works flawlessly even well-lighted environment.





Geometry Correction for Stacking
Epson has taken projection mapping to the next level with Geometry Correction for Stacking that can be performed using Epson Professional Tool software. The function aids the operator in performing two projectors stacking, and tiling assist, which allows edge-blended multi-projector to create one supersized image. This produces impressive massive displays that aim to wow!





Geometry Correction
This function allows users to correct image distortion when projecting on a curved, right-angled screen and edge blending using the Geometric Correction feature without any hassle.




High-definition Images with 4K Lens and Enhancement Technology
4K enhancement technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160, surpassing full HD image quality to give you unbelievable sharpness, clarity and detail on all your presentations. By reengineering the internal structure, colour bleeding is kept to an absolute minimum to deliver 4K resolution throughout the entire zoom range.




Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

LCD:


Native Resolution: WUXGA (1920 x 1200)Size: 1.43” (D8, C2 Fine)

Lamps:


Life (High / Medium / Eco): 20,000 / 30,000 hoursType: Laser Diode Bank

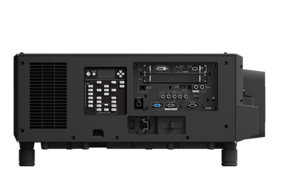

Connectivity:


Network: Wired LAN: RJ-45 x 1 [Compliant with Control I/O (Art-Net)] Wireless Optional: (ELPAP10)Analog Input: D-Sub 15 pin: 1 (RGB, YCbCr, RGB-Video) 5BNC: 1 (RGB, YCbCr, RGB-Video)
5BNC: 1 (RGB, YCbCr, RGB-Video)Digital Input: HDBaseT: 1 (HDCP 2.2)
HDMI: 1 (HDCP 2.2)
DVI-D: 1 (Single Link, HDCP 1.4)
SDI: 1 (SD / HD / 3G)Analog Output: D-Sub 15Pin: 1 (RGB)Control I/O: Remote Control Input: 1 (Stereo Mini)
RS-232C: 1Digital Output: SDI (BNC): 1 (SDI Loop-Through)Others: USB Type A: 1 (for Wireless LAN, Firmware Update, Copy OSD Settings)
USB Type B: 1 (for Firmware Update, Copy OSD Settings)

Projection Lens:


Type: Power Zoom / Power Focus / Power Shift / Power Distortion (Rear Projection: Wide Lens / Short Throw / Zoom Lens only)Focal Length: 54.7 - 73.0 mmZoom Ratio: 1 - 1.35F-number: 1.9 - 2.1Lens Shift: Powered

Wireless Specifications (Wireless LAN: Built-in):


Supported Speed for Each Mode : IEEE 802.11b: 11Mbps*2
IEEE 802.11g: 54Mbps*2
IEEE 802.11n: 130Mbps*2Wireless Security: Quick Mode: OPEN, WPA2-PSK
Advanced Mode: OPEN, WPA/WPA2-PSK, WPA/WPA2-EAP

Screen Size (Projected Distance):


Zoom : Wide: 100” - 1,000” [3.68 - 37.94 m]Zoom : Tele: 100” - 1,000” [5.0 - 51.03 m]

Geometric Correction:


Vertical/Horizontal Keystone: ±45° / ±30° (Zoom: Tele with Middle Throw Zoom Lens)Curve Surface: Yes (Except when in 4K Enhancement mode)Corner Wall: Yes (Except when in 4K Enhancement mode)Auto Keystone: YesPoint Correction: Yes (Except when in 4K Enhancement mode)Quick Corner: Yes

Operating Altitude:


Operating Altitude: Low Altitude Mode: 0 - 50 °C <32 - 122 °F> (0m / 0ft - 2,286m / 7,500ft)
High Altitude Mode: 0 - 40 °C <32 - 104 °F> (Over 2,286m / 4,921ft - 3,048m / 10,000ft) (20% - 80% Humidity, No Condensation)

Start-Up Period:


Start-Up Period: Less than 21 seconds, Warm-up period: 30 seconds

Direct Power On/Off:


Direct Power On/Off: Yes

Air Filter:


Type: High Efficiency Filter (with Smoke Filter function*3)Maintenance Cycle: 20,000 hours*4 (Normal) / 30,000 hours*4 (Extended)

Brightness:


White Light Output (Normal / Extended): 30,000lm / 21,000lmColour Light Output: 30,000lmContrast Ratio: Over 5,000,000:1Light Output (Center): 32,300lm^

Notes:

Notes:
* Based on Futuresource Consulting.

** 20,000H life for laser light source: Approximate time until brightness decreases 50% from first usage.Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environments. Replacement of parts other than the light source may be required in a shorter period.

*** This light output value is measured at the center of the screen as a reference value which is equivalent to lumens. There is no official standard for Light Output (Center) measurements and this measurement is made based on the method set by Epson. Please note, each manufacturer measures Light Output (Center) independently according to their own methods and therefore it is recommended to refer to Color Light Output measured in accordance with IDMS 15.4 and White Light Output measured in accordance with ISO 21118 when selecting and comparing projectors.

*1 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*2 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*3 When using the projector in smoky environments such as at events and so on, make sure you replace the air filter every approximately 240 hours of use. It isn’t guaranteed in all of the smoky environments.

*4 20,000H life for laser light source : Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environments. Replacement of parts other than the light source may be required in a shorter period.

Lens sold separately.
^This light output value is measured at the centre of the screen as a reference value. There is no official standard for light output (Centre) measurements and this measurement is made based on the method set by Epson.
