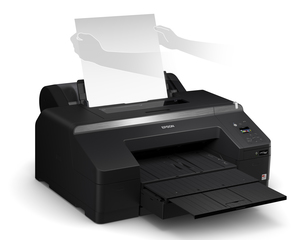

Epson SureColor SC-P5000 Photo Graphic/Proofing Inkjet Printer

COLOUR PRECISION. PHOTOGRAPHIC BRILLIANCE

Epson presents you the benchmark in photographic quality - the SC-P5000 with superior colour reproduction. With Epson’s PrecisionCore^TM printhead, it produces images with incredible details and consistency. In addition, the UltraChrome^TM HDX all-pigment ink set delivers outstanding colour accuracy and image durability in ultra-high resolution, with a wide colour gamut that achieves the most dynamic images.

Epson PrecisionCore printhead technology
New UltraChrome HDX ink, wider colour gamut (with violet ink), high optical density (Dmax) and high print permanence
Smooth and stable print jobs with Epson Calibration Utility and Epson Print Layout software
Optional SpectroProofer enables advanced colour management

Find Paper Support

Overview

PrecisionCore Technology
Possibly the most advanced inkjet printhead technology ever developed, this revolutionary printhead is capable of producing outstanding performance and long-lasting quality with ultra-precise control of dot sizes, shapes and placements. To further ensure high quality results every time, the print nozzles are also capable of producing a wide variety of droplet sizes, which enables both fine detail and quick filling of larger areas all at a single pass.

Photographic Clarity, Proofing Accuracy, Consistently Vibrant Quality
The Ultrachrome HDX ink set on the SC-P5000 achieves a wide colour gamut with the newly-added violet ink, providing the ultimate proofing solution. The extreme colour gamut makes it possible to hit spot and client-specific colours accurately and consistently, achieving PANTONE coverage of 99%*. It is compatible with the widest range of certified proofing media in the industry and the colour prints last up to 60 years.

*PANTONE^® is the property of Pantone LLC. 99% coverage of PANTONE FORMULA GUIDE solid coated palette based on Epson Proofing Paper White Semi-matte printed with Epson printer driver at 2880x1440dpi. PANTONE coverage may vary when printed with a third-party RIP.

Designed for Convenience
Epson Colour Calibration Utility
To enable you to work more efficiently across multiple networked printers, the SC-P5000 comes with the Epson Colour Calibration Utility. This measures colour density and concentration and allows you to manage your printer network from a central point which makes calibrating your printers easier and faster.

Epson Print Layout Software
This software allows easy access to all major functions and helps to manage print layouts and colours with standard bundled industry-leading RIP software. This, coupled with high-precision media feed technology, including a newly developed camera-based paper feed stabiliser and media inductive roller system, and ensure smooth operation even when unattended.

Specifications

Ink Supply System:

Ink Shelf Life: 2 years from printed production date or 6 months after open

Printable Area and Accuracy:

Maximum Paper Width: 432 mm (17")Minimum Cut-sheet Size: 8 x 10"Minimum Paper Width: 203 mm (8.0")Line Accuracy: 0.2% of specified length (+/- .26mm minimum)Maximum Printable Length: 15 m

Sheet Media Handling:

Sheet Loading: Single Sheet Top-loadingThickness: 0.08mm to 1.5mmMaximum Paper Width: up to 432 mm (17")Left / Right Margins: 3mm each side

Roll Media Handling:

Media Width: 8" (203 mm) to 17" (432 mm )Media Thickness: 0.08 to 0.50 mmRoll Core Size: 2 or 3 inchRoll Outer Diameter: Up to 150 mmRoll Paper Remaining: The remaining amount is managed by the barcode print on Roll paperAuto-Cutter: StandardLeft / Right Margins: 3mm each side

Printer Details:

Printer Language: ESC/P rasterSoftware Included:Bundled Software (Windows):
LFP RemotePanel 2
Epson Color Calibration Utility
EpsonNet Config
EpsonNet Print

Bundled Software (Mac):
Epson Color Calibration Utility

Web Download Software:
Epson Print Layout
EpsonNet Setup
LFP Accounting Tool (Windows only)Interfaces: Hi-Speed USB 2.0, Ethernet 10 BASE-T / 100BASE-TX / 1000BASE-T

See Full Specs Hide Full Specs

Print All Specs

Accessories

Epson Photo Quality Ink Jet Paper - A3 100 Sheets

Paper & Media

Support

Notes:

* This product uses only genuine Epson-brand cartridges. Other brands of ink cartridges and ink supplies are not compatible and, even if described as compatible, may not function properly.

¹ Ink lightfastness rating based on accelerated testing of prints on specialty media, displayed indoors, under glass. Actual print stability will vary according to media, printed image, display conditions, light intensity, humidity and atmospheric conditions. Epson does not guarantee longevity of prints. For maximum print life, display all prints under glass or lamination or properly store them. Visit www.wilhelm-research.com for the latest information.

² 99% coverage of PANTONE PLUS FORMULA GUIDE solid-coated palette based on Epson Proofing Paper White Semimatte printed with the Epson Driver at 2880 x 1440 dpi. PANTONE coverage may vary when printed under other conditions.

³ Print times are based upon print engine speeds only. Total throughput depends upon front-end driver/RIP, file size, printing resolution, ink coverage, network speed, etc. Normal is for prints imaged using 1440 x 720 high-speed mode.

⁴ Ink used in conversion varies considerably based on temperature and other factors.

⁵ Allowed by printer driver for Mac® and PC. Application, version of application and operating system version may limit maximum length.
