For Work Printers Large Format Epson SureColor SC-P9000
Discontinued

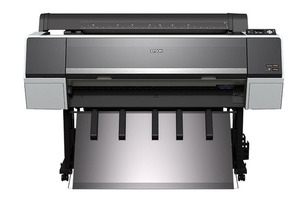

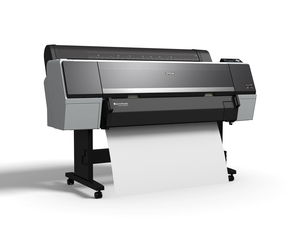

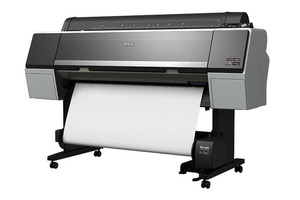

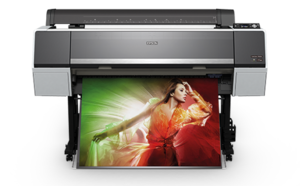

Epson SureColor SC-P9000 Photo Graphic/Proofing Inkjet Printer

Impeccable Photo Quality, Unparalleled Colour Accuracy.

This new generation, state-of-the-art large format printer incorporates the latest colour printing technologies. With Epsons PrecisionCoreTM Thin Film Piezo printhead, it produces images accurate in detail, superior in fidelity with uncompromising image consistency.

    • 44-inch Large Format Printer
      All-new Epson UltraChrome HDX 10-Color pigment ink
      Latest PrecisionCore TFP print head
      Professional roll and sheet media handling
      Powerful controller on-board and Gigabit Ethernet



Advanced Printhead Technology
This new line-up of printers delivers extraordinary performance for the professional printing industry, along with unparalleled colour-matching capabilities, all these enabled by Epson’s PrecisionCore technology. Possibly the most advanced inkjet printhead technology ever developed, this revolutionary printhead is capable of producing outstanding performance and long-lasting quality with ultra-precise control of dot size, shape and placements.

To further ensure high quality results every time, the print nozzles are also capable of producing a wide variety of droplet sizes, which enables both fine detail and quick filling of larger areas—all at a single pass.

Photographic Accuracy and Clarity
UltraChrome Inks
Printers can see the difference the advanced ten-colour screening algorithm makes. Print results show superior colour and clarity, producing extremely fine blends and subtle photographic transitions. The most critical eye will see accurate highlight-to-shadow details with no visible photographic graininess. Regardless of the viewing light source, prints reveal a consistent colour balance. Combined with the precise dot placement accuracy of the PrecisionCore TFP printhead, overall photographic print quality shows a dramatic improvement.

Efficient Workflow Solutions
Epson Color Calibration Utility
To enable you to work more efficiently across multiple networked printers, the SC-P9000 comes with the Epson Color Calibration Utility. This measures colour density and concentration and allows you to manage your printer network from a central point which makes calibrating your printers easier and faster.

Once the base printer is set as the standard, the derivatives can calibrate their colours based on the base printer by transferring the colour chart. What’s more, the calibrated data can be used for all media types and print modes and is stored directly on the printer, eliminating the hassle of exporting and importing every time you share data.

The overall benefit is a significant reduction in the amount of manual process required to run your printers.

Superior Connectivity
The new machines come with Hi-Speed USB 2.0 and Ethernet connectivity, with support for professional Epson photographic drivers for Macintosh® and Windows®, as well as being supported by most leading third-party software RIPs and workflows.

Advanced Media Handling and Loading
To make the printing process quicker and simpler, the Epson SC-P9000 printer offers:

Epson ePlaten™ Technology
Highly accurate automatic media loading and handling and fast, spindle-free roll media support for less chance of media damage

Professional Media Handling
The P-series is compatible with virtually any media type; in roll or cut sheet, up to 24 or 44 inches wide, as well as an accurate loading of cut-sheet media of up to 1.5 mm thick posterboard. All media is front-loaded via a unique straight-through media path. A printer and driver based media identification and synchronisation system provides virtually error-free media use. Available on the SC-P9000, there is an optional Automatic Take-up Reel System allowing large print runs to go through unattended.

Epson ePlaten Media Loading Technology
For less chance of media damage and to simplify the overall roll and cut-sheet media loading process, the printers offer accurate and automatic media loading movement, skew adjustment and tracking.

Spindle-Free Roll Media Loading
Designed to work with Epson’s ePlaten technology, the user-adjustable roll media adapters accept either 2 or 3-inch media cores. A simple tension lever ensures quick and secure media core loading. Additional media adapter pairs are available as accessories for efficient roll media switching.

This system is useful for tracking partially used media rolls. It enables real-time, automatic measurement of remaining roll media length as well as auto barcode tagging of remaining roll media for faster reloading.

Intelligent High-Capacity Ink System
Pressurised ink cartridge technology ensures that ink is reliably delivered at all print speeds, while dramatically reducing the physical size of the ink cartridges. The cartridges themselves are available in sizes up to 700ml.

These can be replaced on-the-fly to make sure your print run never needs to be interrupted and for even greater flexibility, the cartridges can be mixed and matched across all three sizes.

Ink Supply System:


Ink Shelf Life: 2 years from printed production date or 6 months after open

Printable Area and Accuracy:


Maximum Paper Width: 1118 mm (44")Minimum Cut-sheet Size: A4Minimum Paper Width: 254 mm (10.0")Line Accuracy: 0.2% of specified length (+/- .26mm minimum)Maximum Printable Length: 15 m

Sheet Media Handling:


Sheet Loading: Single Sheet Top-loadingThickness: 0.08mm to 1.5mmSingle Sheet, Top-loading: up to 1118 mm (44")Left / Right Margins: 3mm each side

Roll Media Handling:


Media Width: 10" (254 mm) to 44" (1118 mm )Media Thickness: 0.08 to 0.50 mmRoll Core Size: 2 or 3 inchRoll Outer Diameter: Up to 150 mmRoll Paper Remaining: The remaining amount is managed by the barcode print on Roll paperAuto-Cutter: StandardLeft / Right Margins: 3mm each side

Printer Details:


Printer Language: ESC/P rasterSoftware Included:Bundled Software:
LFP RemotePanel 2
Epson Color Calibration Utility
EpsonNet Setup
EpsonNet Config
EpsonNet Print (Windows only)
Remote Manager (Access via browser)

Web Download Software:
Epson Print Layout
LFP Accounting Tool
Epson LFP HDD Utility
LFP Print Plug-In for OfficeInterfaces: Hi-Speed USB 2.0, Ethernet 10 BASE-T / 100BASE-TX / 1000BASE-T

Notes:

*1 Figures represent print times only for the Epson test sample image as shown, produced on Plain (draft – fine modes) and Premium Photo paper (super fine & super photo modes). Print speeds are engine only with total throughput time dependant on workflow configuration, paper type, software, file format / size, print resolution, ink coverage, networking, and other factors.

*2 users need to choose to configure the machine with either light light black or violet. Once this choice has been made, it is final and cannot be undone or switched at a later time. 99% pantone coverage requires configuration with violet ink. Configured with light light black provides 98% pantone coverage.
