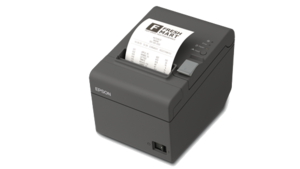

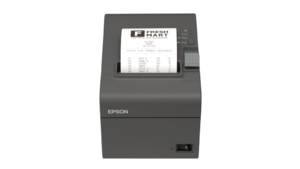

Epson TM-T82II Thermal POS Receipt Printer

Zoom In
Epson TM-T82II Thermal POS Receipt Printer
Epson TM-T82II Thermal POS Receipt Printer
Epson TM-T82II Thermal POS Receipt Printer
Epson TM-T82II Thermal POS Receipt Printer
Epson TM-T82II Thermal POS Receipt Printer
Epson TM-T82II Thermal POS Receipt Printer

Designed for Easy Installation, Use and Maintenance

The Epsons TM-T82II is a fully featured thermal printer which delivers fast receipt printing speed of up to 200mm/s and is backed by the industrys best-in-class reliability in high volume environments.

    • Thermal Output
      Compactly designed
      Speed: Up to 200mm/sec
      Wall-mount feature





Support
Reliability You Can Count On

With a MCBF of 60 million lines, an auto cutter life of 1.5 million cuts, and fast receipt printing speed of up to 200mm/s, the TM-T82II delivers best-in-class reliability so critical in high volume environments.

Easy Installation

The TM-T82II is designed for easy installation. Even if it is installed horizontally with its back directly against the wall, its cover can be opened, so no extra space is needed. If the accessory switch panel for vertical installation is used when installed vertically, easy operation is available with its good visibility. By attaching the wall hanging bracket to the bottom, the TM-T82II can be set with its front perpendicularly for installation to other devices.

All-in-one Package

All of the necessary drivers and accessories are included in the box. Such as the printer driver, utility software, manuals, interface cable, wall hanging bracket, rubber feet, switch panel for vertical installation, and a water-proof power switch cover. The CD-ROM includes drivers for Windows® / Linux® / Mac OS® X, virtual port driver, OPOS™, OPOS for .NET™, and Java POS™.

Print Font:

Font: 9 x 17 / 12 x 24, Hanji Font: 24 x 24, Thai Font: 9 x 24 / 12 x 24

Column Capacity Standard:

Paper Width 80mm: 48 / 64, Hanji font: 24, Thai font: 64 / 24Paper Width 58mm: 35 / 46, Hanji font: 17, Thai font: 35 / 46

Column Capacity 42 Column Mode:

Paper Width 80mm: 42 / 60, Hanji font: 21, Thai font: 42 / 60Paper Width 58mm: 42 / 31, Hanji font: 15, Thai font: 42 / 31Character Size (W x H): 0.88 x 2.13mm / 1.25 x 3mm, Hanji font: 3 x 3 mm, Thai font: 0.88 x 3 mm / 1.25 x 3 mmCharacter Set : 95 Alphanumeric, 18 set International, 128 x 43 pages (including user-defined page) Hanzi: Traditional Chinese: Big5: 13,535 Bar code: UPC-A, UPC-E, JAN13(EAN13), JAN8(EAN), CODE39, ITF, CODABAR(NW-7),CODE93, CODE128, GSI-128, GSI DataBar Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite SymbologyCharacters Per Inch: 22.6cpi / 16.9cpi, Hanji Font: 7.8cpi, Thai Font: 22.6cpi / 16.9cpi

Data Buffer:

Data Buffer: 4KB or 45bytes

Paper:

Width and Roll Diameter: 79.5 ± 0.5 x diameter 83.0 mm 57.5 ± 0.5 x diameter 83.0 mm

Overall Dimensions (D x W x H):

Overall Dimensions (D x W x H): 199 x 140 x 146 mm

Factory Options:

Factory Options: External buzzer unit

Printing Method:

Printing Method: Thermal Line Printing

Standard Accessories:

Standard Accessories ROM: Roll paper x 1 roll (for checking the initial movement of the printer), CD-ROM (Drivers,Utility Software, Manuals), Setup guide, Power button cover, Waterproof power button cover, Wall hanging bracket, Screws for wall hanging bracket, Rubber feet for vertical installation, Control panel sheet for vertical installation, 58-mm width paper guide, External power supply (Model:PS-180)

Dot Density:

Dot Density: 203 x 203 dpi

Mass:

Mass: Approx. 1.7kg

Auto cutter life:

Label: 1.5 million cuts

Reliability:

MTBF: 360,000 hoursMCBF: 60,000,000 linesPrinter Mechanism Life: 15 million lines
