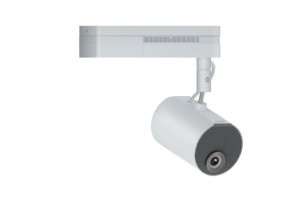

Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector

Zoom In
Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector
Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector
Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector
Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector
Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector
Epson LightScene EV-110 Accent Lighting 3LCD Laser Projector

The dynamic laser projector for digital art and signage.

    • Create stunning visual displays and immersive environments with the EV-110 Lightscene Laser Projector, the cutting-edge projection signage solution from Epson. A convergence of lighting and display technology, Epson’s latest range of LightScene range of projectors captivate audiences by simultaneously illuminating and projecting on virtually any surface or material, unleashing dynamic, experiential content for digital art, commercial signage and décor applications. Designed to blend in discreetly to any setting — from retail, hospitality and event spaces to showrooms and museums — EV-110 Lightscene Laser Projector offers a sleek, white design, with an array of configuration, mounting and programming options.

      •    Laser projector with up to 20,000 hours of virtually maintenance-free operation
      •    Sleek spotlight design that seamlessly blends into any environment
      •    Basic interactivity with GPI input function
      •    Suite of software to support projection and content management functions
      •    Flexible installations with 360 degree ball-joint structure



DATASHEET

Laser Light Source Technology
With key components such as the laser diode, inorganic 3LCD panels, and phosphor wheel fully sealed, you can now project with a peace of mind for 20,000 hours1 without any downtime for maintenance. The EV-110 LightScene Laser Projector’s durable build allows it to work longer without disruption. Most importantly, there are no lamps to replace, reducing operation cost, time, and hassle.

Sensor Integration With General Purpose Interface
With its GPI function, users are able to enhance engagements with customers by connecting sensors to the projector. With the sensors integrated to the EV-110 LightScene Laser Projector, you can easily program it to detect motions and project dynamic contents simultaneously, in turn, elevating both guests and customers’ experience.

Rich and clear audio via bluetooth connectivity
The EV-110 LightScene Laser Projector has bluetooth connectivity function, allowing fuss-free connection to external speakers without complicated and messy cable management. Enjoy the flexibility in the placement of your audio system to create a rich and soothing ambience for your space.

Compatible with Epson Creative Projection App
Jazz up your displays and spaces with creative personalised content using the Epson Creative Projection App2. Upload your contents onto the projector via the SD card or through network, hence further reducing the hassle.

Sleek Spotlight Design
The stylish spotlight design of EV-110 LightScene Laser Projector blends in perfectly with the store’s aesthetics, ensuring it does not look out-of-place, while engaging customers with dynamic contents. The aesthetically-pleasing new front cover in grey also allows dust to be less noticeable and requires lesser maintenance.



Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

Connectivity:

USB Interface: USB Type A: 1 (For GPI In [2 Ch] or 5V/2A Power Supply)
USB Type B: 1 (For firmware update)Network: Wireless LAN: in-built
Wired LAN: RJ45 x 1 (100Mbps)Memory: SD Card: 1 (SDHC, up to 32GB, more than Class 10)Digital Input: HDMI: 1Audio Output: Stereo Mini Jack: 1USB Input: USB Type A: 1 (For 1200mA power supply)
USB Type B: 1 (For firmware update)

Projection Lens:

Type: Optical Zoom (Powered) / Focus (Powered)Focal Length: 18.2mm-28.4mmZoom Ratio: 1 - 2.21 (Total)
1 - 1.58 (Optical Zoom)F-number: 1.51-1.92Throw Ratio Range: 1.38 - 2.19 (Wide to Tele)

Contrast Ratio:

Contrast Ratio: 2,500,000:1

Wireless Specifications (Wireless LAN: Built-in):

Supported Speed for Each Mode : IEEE 802.11b: 11 Mbps*3
IEEE 802.11g: 54 Mbps*3
IEEE 802.11n: 130 Mbps*3Wireless LAN Security: Open
WPA2/WPA3-PSK
WPA2/WPA3-EAP
Supported EAP Type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAPSupported Connection Mode: Infrastructure, Access Point

Screen Size (Projected Distance):

Zoom : Wide: 30" to 150" (0.88 to 4.51 m)Zoom : Tele: 30" to 150" (1.41 to 7.16 m)Standard Size: 60" screen 1.79m (Standard size)

Geometric Correction:

Vertical/Horizontal Keystone: ±45° / ±40°Quick Corner: Yes

Operating Altitude:

Operating Altitude: 0 m to 3048 m (0 ft to 10000 ft) (over 1500 m / 4921 ft : with High altitude mode)

Start-Up Period:

Start-Up Period: Less than 9 seconds
Warm-up period: 30 seconds

Direct Power On/Off:

Direct Power On/Off: Yes / Yes

Brightness:

White Light Output (Normal / Extended): 2200lm / 1100lm / 1100lmColour Light Output: 2200lmContrast Ratio: Over 5,000,000:1Colour Mode: Dynamic Normal

Adjustment Angle:

Adjustment Angle: Upper: 90° to Lower: 90°Adjustment Angle: 360°Adjustment Angle: 0° - 90° (Portrait projection)

Adjustment Functions:

Aspect Mode: Yes
See Full Specs Hide Full Specs
Print All Specs

Notes:

 1 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

2 Requires App download. Internet connection required for download. Data usage fee may apply. Only applicable for iOS devices. iOS 10 and earlier are not supported. A device with at least 3GB of storage space is recommended.
