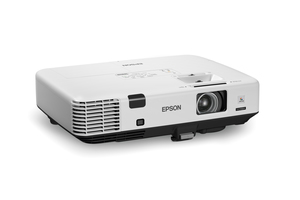

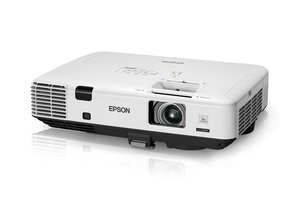

Epson 1940W WXGA 3LCD Projector

Always The Right Angle For Your Business

Dimming the lights during presentations is a thing of the past. With the Epson EB-1940W, you can enjoy uncompromised image quality even in a brightly lit room.

    • White Light Output 4,200 lumens, Colour Light Output 4,200 lumens
      WXGA Resolution
      Split Screen Projection
      Convenient Presentation through Epson iProjection

  • Model: V11H474052

Clear images with accurate details
Farouja DCDi - Eliminate Jagged Lines
The EB-1940W features a Faroudja DCDi (Directional Correlational Deinterlacing) Cinema video enhancement processor that produces exceptional image quality without introducing artefacts. The Faroudja DCDi was developed to eliminate jagginess by using a unique algorithm, so your video-based presentations remain sharp all the time.

Farouja DCDi - Enhanced Sharpness
Greater depth and perception add appeal to your presentations. With TrueLife enhancement, a sharpness enhancement technology, the projector identifes and enhances transitions, such as skin texture, freckles and hair, to produce images with remarkable clarity and colour.

DICOM SIM Mode
This colour mode produces images with clear shadows, ideal for projecting X-rays and other medical images. (Not for actual medical diagnosis)

Network Management For Easy Monitoring
EasyMP Monitor
With Epson’s EasyMP Monitor network monitoring and control software, you can see from a single PC, which connected projectors are available and whether they are running efficiently  – even across the biggest network.

You can also configure your projectors, monitor their statuses, access their serial numbers remotely, and even set up the software to deliver instant email alerts for pre-defined critical indicators such as non-functioning devices or overheating lamps.

Message Broadcasting
Now you can send messages or announcements as JPEG files simultaneously to any number of projectors on a network. This makes the EB-1940W useful for immediate communication needs or even emergencies.

Enrich Presentations with a Single Projector
Split Screen
The split screen feature allows inputs from two separate sources to be displayed side by side on the same screen. In a video conference, for example, images of presentation materials and remote participants can be shown simultaneously.


Experience Convenient, PC-Free Presentations
Epson iProjection (Wired LAN connection with wireless LAN access point is required)
With the iProjection application for both iOS and Android, wireless projection from a smart device is made possible. This feature supports various files and allows you to present your smartphone contents with ease. It also lets you use other touch-screen operations, such as flicking to turn pages and pinching to zoom in or out. Projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer, interrupt connection disabling and encryption data transfer capabilities are not supported during the use of iProjection.

Environmental-Friendly
For more information on Epson's environmental programme, visit www.epson.com/environment

MRP of replacement lamp for this product is Rs. 12999/-.

What's in the box:

Power Cord: 1.8m
Computer Cable: 1.8 m D-sub 15pin (Male) - D-sub 15pin(Male)
Remote Control: Compact type
Battery: Manganese dry cell x 2
Bundled Software: Projector Software Ver.1.20a (CD-ROM)
Password Protect Sticker
User’s Manual Set

Brightness1:


White Light Output (Normal/Eco): 4,200lm / 2,910lmColour Light Output: 4,200lm

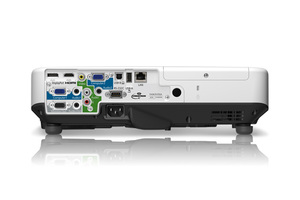

Connectivity:


Analog Input: D-Sub 15 pin; 1 (Black)
Component; D-sub 15pin (Blue molding) x 2 (in common with Analog RGB connector)
Composite; RCA (Yellow) x 1

Contrast Ratio:


Contrast Ratio: 3000:1

Operating Altitude:


Operating Altitude: 0m - 2,286m <0ft - 7,500ft> (over 1,500m / 4,921ft: with High altitude mode)

Start-Up Period:


Start-Up Period: 8 seconds, Warm-up period: 30 seconds

Air Filter:


Type: High Efficiency FilterMaintenance Cycle: 5,000H

Main Parts Specification:


LCD: Native Resolution; WXGA
Size; 0.59" with MLA

Optical Systems:


Lens: Type; Optical zoom (Manual) / Focus (Manual)
F-Number; 1.51 - 1.99
Focal Length; 18.2mm - 29.2mm
Throw Ratio; 1.38 - 2.24 (Wide - Tele)
Shooting Area; Lamp: Life (Normal/Eco)*1; 2,500 hours / 4,000 hours
Type; 245W UHE

Keystone Correction:


Vertical/Horizontal: ± 30° / ± 30° (Zoom: Tele) (Horizontal Keystone Adjuster)Auto Keystone Correction: Yes

Audio Input:


Stereo Mini Jack: 1

Others:


USB Type A: 1 (for USB memory / ELPDC06 Document Camera)USB Type B: 1 (USB Display)

Control I/O:


RS-232C: D-sub 9pin x 1

Hardware Buttons:


Screen Size (Projected Distance): Zoom: Wide; 29" - 280" [0.84m - 8.4m]
Zoom: Tele; 29" - 280" [1.36m -13.9m]
Standard size; 60" screen 1.79m - 2.92m

Digital Input:


Display Port: Yes

Direct Power On / Off:


Direct Power On / Off: Yes

Notes:

* Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
** Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
