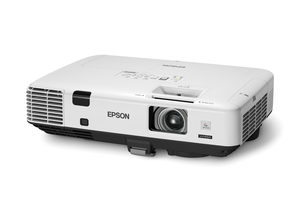

Epson 1945W WXGA 3LCD Projector

Always The Right Angle For Your Business

Dimming the lights during presentations is a thing of the past. With the Epson EB-1945W, you can enjoy uncompromised image quality even in a brightly lit room.

    • White Light Output 4,200 lumens, Colour Light Output 4,200 lumens
      WXGA Resolution
      World's First Real-Time Auto Keystone Correction
      Multi-PC Projection
      PC-Free Presentations



  • Model: V11H471052

Projection Versatility and Set-up Flexibility
World's First Real-Time Auto V&H Keystone Correction
With the world's first real-time auto keystone correction feature, the projector will automatically correct the distortion of the projected image within one second - no matter where the projector is placed. This rapid adjustment speed lets you display a perfectly rectangular screen even while moving the projector.

Screen Fit
Push the "Screen Fit" button to automatically adjust the image frame with the edges of the screen when the image extends beyond the frame of the screen or whiteboard. This feature allows you to focus more on your presentation than on adjusting the projection output.

Clear images with accurate details
Farouja DCDi - Eliminate Jagged Lines
The EB-1945W features a Faroudja DCDi (Directional Correlational Deinterlacing) Cinema video enhancement processor that produces exceptional image quality without introducing artefacts. The Faroudja DCDi was developed to eliminate jagginess by using a unique algorithm, so your video-based presentations remain sharp all the time.

Farouja DCDi - Enhanced Sharpness
Greater depth and perception add appeal to your presentations. With TrueLife enhancement, a sharpness enhancement technology, the projector identifes and enhances transitions, such as skin texture, freckles and hair, to produce images with remarkable clarity and colour.

DICOM SIM Mode
This colour mode produces images with clear shadows, ideal for projecting X-rays and other medical images. (Not for actual medical diagnosis)

Focus Help
With the Focus Help button, you can adjust the focus easily by looking at the figure and bar gauge displayed on the screen during adjustment. This function is especially helpful for users who want image accuracy during their presentations or when the adjustment of the image is done by a single person.

Network Management For Easy Monitoring
EasyMP Monitor
With Epson’s EasyMP Monitor network monitoring and control software, you can see from a single PC, which connected projectors are available and whether they are running efifciently – even across the biggest network.

You can also configure your projectors, monitor their statuses, access their serial numbers remotely, and even set up the software to deliver instant email alerts for pre-defned critical indicators such as non-functioning devices or overheating lamps.

Message Broadcasting
Now you can send messages or announcements as JPEG files simultaneously to any number of projectors on a network. This makes the EB-1945W useful for immediate communication needs or even emergencies.

Enrich Presentations with a Single Projector
Split Screen
The split screen feature allows inputs from two separate sources to be displayed side by side on the same screen. In a video conference, for example, images of presentation materials and remote participants can be shown simultaneously.

Multi-PC Projection
With Epson's "EasyMP Multi PC Projection" software, screens from multiple networked computers can be displayed simultaneously on the same projection - for more interactive meetings. Up to 32 computers can connect to the projector through a network, with screens from any four computers being shown at a time.

Experience Convenient, PC-Free Presentations
Epson iProjection
With the iProjection application for both iOS and Android, wireless projection from a smart device is made possible. This feature supports various files and allows you to present your smartphone contents with ease. It also lets you use other touch-screen operations, such as flicking to turn pages and pinching to zoom in or out. Projector profile search, multi-screen display, distribution function, audio transfer, movie file transfer, interrupt connection disabling and encryption data transfer capabilities are not supported during the use of iProjection.

PC Free
Now you can deliver PC-free presentations anytime. The EB-1945W supports a wide range of content formats, including PDF, JPEG, BMP, GIF, PNG, and Motion JPEG. Simply save your files in a USB memory, then plug and play.

Environmental-Friendly
For more information on Epson's environmental programme, visit www.epson.com/environment

MRP of replacement lamp for this product is Rs. 12999/-.

What's in the box:

Power Cord: 1.8m
Computer Cable: 1.8 m D-sub 15pin (Male) - D-sub 15pin(Male)
Remote Control: Compact type
Battery: Manganese dry cell x 2
Bundled Software: Projector Software Ver.1.20d (CD-ROM)
Password Protect Sticker
User’s Manual Set

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness1:


White Light Output (Normal/Eco): 4,200lm / 2,910lmColour Light Output: 4,200lm

Connectivity:


Analog Input: D-Sub 15 pin; 1 (Black)
Component; D-sub 15pin (Blue molding) x 2 (in common with Analog RGB connector)
Composite; RCA (Yellow) x 1
S-Video; Mini DINDigital Input: Display Port; Yes

Contrast Ratio:


Contrast Ratio: 3000:1

Wireless Specifications (Wireless LAN: Built-in):


Supported Speed for Each Mode : IEEE 802.11b: 11 Mbps*
IEEE 802.11g: 54 Mbps*
IEEE 802.11n: 130 Mbps*
*Maximum speed and range is achievable when used with same enhanced mode technology.Actual data rates, features and performance may vary depending on your computer system, the environmentand other factors.Open: WPA/WPA2-PSK, WPA/WPA2-EAPSupported EAP type: PEAP, PEAP-TLS, EAP-TLS, EAP-Fast, LEAP

Operating Altitude:


Operating Altitude: 0m - 2,286m <0ft - 7,500ft> (over 1,500m / 4,921ft: with High altitude mode)

Start-Up Period:


Start-Up Period: 8 seconds, Warm-up period: 30 seconds

Air Filter:


Type: High Efficiency FilterMaintenance Cycle: 5,000H

Main Parts Specification:


LCD: Size; 0.59" with MLA
Native Resolution; WXGA

Optical Systems:


Lens: Type; Optical zoom (Manual) / Focus (Manual)
F-Number; 1.51 - 1.99
Focal Length; 18.2mm - 29.2mm
Throw Ratio; 1.38 - 2.24 (Wide - Tele)Lamp: Life (Normal/Eco)*1; 2,500 hours / 4,000 hours
Type; 245W UHE

Keystone Correction:


Vertical/Horizontal: ± 30° / ± 30° (Zoom: Tele) (Button Typer)Auto Keystone Correction: Yes

Audio Input:


Stereo Mini Jack: 1

Others:


USB Type A: 2 (for USB memory / ELPDC06 Document Camera)USB Type B: 1 (USB Display)

Control I/O:


RS-232C: D-sub 9pin x 1

Hardware Buttons:


Screen Size (Projected Distance): Zoom: Wide; 29" - 280" [0.84m - 8.4m]
Zoom: Tele; 29" - 280" [1.36m -13.9m]
Standard size; 60" screen 1.79m - 2.92m

Direct Power On / Off:


Direct Power On / Off: Yes

Notes:

* Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.
** Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
