Discontinued

Epson 955WH WXGA 3LCD Projector

Essential Projectors for Effective Meetings

The essential choice for your office with convenient features from wide connectivity options to space-saving designs.

  • White and Colour Brightness at 3,200lm
  • WXGA resolution
  • Multi-PC projection
  • Horizontal keystone slider
  • 1.6x zoom lens

Enhanced Features for Superior Performance
1.6x Zoom Lens
Enjoy greater placement flexibility with 1.6x zoom lens. With wider lens, you can position the projector closer to the screen to free up valuable room and desk space.

Multi-PC Projection
With the control of a host PC, up to 50 terminals can be connected via the multi-PC projection from a single projector. The host PC acts as a moderator, selecting media from up to four terminals to be projected simultaneously. With the moderator function, you can maintain control and prevent tampering with what’s projected on screen.

Wireless Transmission
Enjoy enhanced connectivity and flexibility with Wi-Fi connectivity*. Easily share and transmit images, text and files from your smart devices using the “Epson iProjection” application for smooth and smart projections. And with an additional attachment piece holding the wireless LAN adaptor in place, your transmissions will never be interrupted.

*Wireless LAN adaptor ELPAP07 is required.

Epson iProjection
The Epson iProjection application enables a wireless connection for projecting images and files from your smart devices. The new “QR Code Reader” function makes this wireless connection even easier by simply reading the QR code that is projected on the screen from your smart devices.

High Contrast Ratio
Add brilliance to your presentations. Boasting stunning brightness of up to 3,200 lumens and a high contrast ratio of 10000:1, these projectors enable you to project beautiful, well-defined images wherever you are, regardless of ambient light.

Horizontal Keystone Adjuster
Deliver powerful presentations anywhere in the room. With the easy-to-use sliding Horizontal Keystone Adjuster, screen corrections can be done quickly, easily and accurately, even in a limited space.

With automatic vertical keystone detection and adjustment, there is no longer any need for awkward and time-consuming manual image adjustments that interrupt the smooth flow of your presentation delivery. This handy feature automatically detects the projector’s vertical keystone
distortion and corrects it instantly.

Wide-ranging Connectivity
Advanced connectivity features mean convenient and hassle-free projections of your presentations. With a wide-ranging interface, you can

choose from a variety of connection methods including HDMI, VGA and LAN. In addition, these projectors are equipped with two HDMI ports, one of which is MHL-enabled, for greater digital compatibility.

Simply connect your MHL-compatible device with the MHL cable to fully enjoy your contents on the big screen. What’s more, when connected, you can charge your smart device and operate it using the projector’s remote control.

Redirected Exhaust

The front-facing exhaust is intelligently positioned to prevent anyone from being exposed to the hot exhaust, especially when on a narrow table. This allows the audience to fully concentrate on the presentation, even if they are seated beside or behind the projector.

Split Screen
Display images from two different sources side by side on the same screen for a more effective presentation. In video conferences, for example, images of presentation materials and remote participants can be shown simultaneously. What’s more with Digital x Digital compatibility, you’ll enjoy sharper, more vibrant projections.

Superior Sound Quality
The built-in 16W speaker provides ample sound even in large rooms, removing the need for external speakers to save you valuable time and money.

Easy-to-replace Lamps
With the lamp cap located on the upper side of the projector, you can change lamps easily even if the projector is installed on the ceiling. Lamps can be replaced quickly without tools and dismounting of the projector from the ceiling mount.

Firmware Updates
Easily update your projector’s firmware without having to take it to a service centre. To update, simply insert a USB memory stick with the necessary software. Updates can be done over LAN network or via a USB-B connection.

Auto Power On
With the auto power on function, projection starts automatically once a projection signal is detected via VGA cable, providing you with an easy and hassle-free presentation.

Long-lasting Performance
Longer Lamp Life
With a long lamp life of 10,000 hours in eco-mode, the frequency of costly lamp replacements is reduced, saving you time and money.

Air Filter
With a maintenance cycle of 10,000 hours in eco-mode, the need for regular maintenance of the air filter is minimised to save you time and money.

For more information on Epson's environmental programme, visit http://global.epson.com/SR/environment

MRP of replacement lamp for this product is Rs. 6999/-.

What's in the box:

Power Cable: 1.8m
Computer Cable (VGA Cable): 1.8m
Remote Control: Yes, with Alkaline AA Battery x 2
Cable Cover: Attached
Bundled Software: Projector Software (CD-ROM)
User’s Manual Set: CDROM
Soft Carrying Case : ELPKS67

Projection Technology:


Projection Technology: RGB liquid crystal shutter projection system (3LCD)

Brightness1:


White Light Output (Normal): 3,200lmColour Light Output: 3,200lm

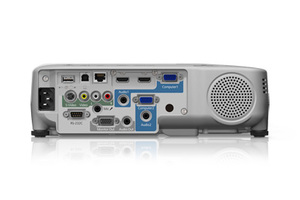

Connectivity:


Analog Input: D-Sub 15 pin; 2 (Blue)
Composite; RCA x 1 (Yellow)
S-Video; Mini DIN x 1Digital Input: HDMI; 2 (1 x MHL)

Contrast Ratio:


Contrast Ratio: 10,000:1

Wireless Specifications (Wireless LAN: Built-in):


Supported Speed for Each Mode : IEEE 802.11b: 11 Mbps*3
IEEE 802.11g: 54 Mbps*3
IEEE 802.11n: 130 Mbps*3Wireless LAN Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)

Screen Size (Projected Distance):


Zoom : Wide: 33” - 280” [0.97 - 8.45 m]Zoom : Tele: 33” - 280” [1.59 - 13.71 m]

Operating Altitude:


Operating Altitude: 0 - 3,000 m <0 - 9,843 ft> ( over 1,500m / 4,921ft: with high altitude mode)

Start-Up Period:


Start-Up Period: 5 seconds, Warm-up Period: 30 seconds

Main Parts Specification:


LCD: Size; 0.59" with MLA (D8)
Native Resolution; WXGA

Optical Systems:


Lens: Type; Optical Zoom (Manual) / Focus (Manual)
F-Number; 1.51 - 1.99
Focal Length; 18.2 - 29.2 mm
Zoom Ratio; 1 - 1.6
Throw Ratio; 1.38 - 2.24 (Wide - Tele)Lamp: Life (Normal/Eco)*1; 5,000 hours / 10,000 hours
Type; 200W UHE

Keystone Correction:


Vertical/Horizontal: ±30° / ±30° (Slide Bar)Auto Keystone Correction: Yes (Vertical)

Audio Input:


Stereo Mini Jack: 2RCA (White/Red): 1

Audio Output:


Stereo Mini-jack: 1

Others:


USB Type A: 1 (for USB Memory, USB Document Camera, Wireless LAN, Firmware Update)USB Type B: 1 (for USB Display, Mouse, K/B, Control, Firmware Update)

Control I/O:


RS-232C: D-Sub 9pin x 1

Touch Unit:


Weight: 269 x 297 x 87 mm

Video Quality:


Video Quality: 3D Y/C Separation, Noise Reduction, Motion Compensated Interlace-Progressive Conversion (2-2,3-2 Film Detection)

Direct Power On / Off:


Direct Power On / Off: Yes

Colour Mode:


Colour Mode: Dynamic, Presentation, Theatre, sRGB, Blackboard

Notes:

1 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

*2 Colour brightness (colour light output) and white brightness (white light output) will vary depending on usage conditions. Colour light output measured in accordance with IDMS 15:4; white light output measured in accordance with ISO 21118.

*3 Maximum speed and range is achievable when used with same enhanced mode technology. Actual data rates, features and performance may vary depending on your computer system, the environment and other factors.

*4 When used in the general office environment (the amount of floating dust: 0.04 - 0.2 mg/m³ ). Based on the Epson’s in-house test results. 25°C (77°F).
