Projectors Corporate and Education Epson EB-L210W

Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless

Zoom In
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless
Epson EB-L210W WXGA Standard-Throw Laser Projector with Built-in Wireless

Keep clients or students engaged wherever they are in the meeting room or classroom with bright, large images.

    • Promote engagement in the classroom with the versatile EB-L210W lamp-free laser display. Providing 4,500 lumens of brightness1, the EB-L210W delivers vibrant images to everyone in the classroom at an exceptional value. Designed for convenience, this flexible solution features WXGA resolution, produces an image up to 16x larger than a 75" flat panel display and includes a 20,000-hour virtually maintenance-free laser light source2 for simple and reliable performance. Perfect for collaborative learning, it provides wireless connectivity for convenient content sharing from laptops and mobile devices3.

      • 4,500 lumens of colour and white brightness1
      • WXGA resolution at an exceptional value
      • No lamps to replace ever with solid-state laser light source
      • Image size of up to 787cm(300”) diagonal in 16:10 aspect ratio.
      • Wireless connectivity with screen mirroring capability3





Support DATA SHEET

Large screen size - Easy to see

Creating a large screen environment that can be seen clearly in presentations and classes, project images large enough for everyone in the room to read and maximize productivity. Laser projector with affordable price that looks clear even with the room lights on.  High BrightnessWith powerful brightness of up to 4,500 Im, EB-L210W delivers clear and detailed images even in bright environment.

Simple wireless projectionEnjoy ease of connection with built-in and optional wireless connection capability. Supports Screen mirroring too!

Experience vivid and lifelike imagesUsing Epson's very own original designed fixed phosphor unit, coupled with the innovative optimized design, the projector is now more compact yet images remain bright and sharp. Thanks to the new heatsink design, the projector has efficient heat conductivity, resulting in improved heat resistance, all while delivering high-quality vivid images.

What's in the box:

Power Cable: 1.8m x 1

HDMI Cable (1.8m)

Remote Control with 2x AA Battery

Wireless Specifications (Screen Mirroring):

Supported Speed: Infrastructure: IEEE 802.11b (2.4GHz): 11 Mbps5; IEEE 802.11g (2.4GHz): 54 Mbps5; IEEE 802.11n (2.4GHz): 72.2 Mbps5; IEEE 802.11a (5GHz): 54 Mbps5; IEEE 802.11n (5GHz): 150.0 Mbps5; IEEE 802.11ac (5GHz): 325Mbps5; Access Point(Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54 Mbps5; IEEE 802.11n (2.4GHz): 72.2 Mbps5; IEEE 802.11a (5GHz): 54 Mbps5; IEEE 802.11n (5GHz): 150.0 Mbps5; IEEE 802.11ac (5GHz): 325Mbps5

Projection Technology:

Projection Technology: RGB liquid crystal shutter projection system

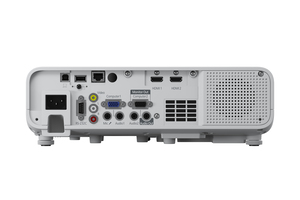

Connectivity:

Network: Wireless: Built-in and Optional (Using ELPAP11)
Wired Lan: RJ45 x 1 (100Mbps)Analog Input: D-Sub 15Pin: 2 (RGB)
Composite RCA x 1 (Yellow)Digital Input: HDMI: 2 (HDCP 2.3)Analog Output: D-Sub 15Pin: 1 (Black) (in common with Computer 2)Output Terminal: D-Sub 15Pin: 1 Shared with Computer 2Audio Input: RCA: 1 (White, Red)
Stereo Mini Jack: 2Audio Output: Stereo Mini Jack: 1Audio Out: Stereo Mini Jack: 1Mic I/O: Mic In: 1 (Stereo Mini)Control I/O: RS-232C: D-Sub 9pin x 1Others: USB Type A: 1 (For PC Free, FW Update, Copy OSD Settings or 5V/2A Power Supply)
USB Type B: 1 (for Firmware Update, Copy OSD Settings) Mic I/O: Stereo Mini x 1

Projection Lens:

Type: Optical Zoom (Manual) / Focus (Manual)Focal Length: 18.2 – 29.1mmZoom Ratio: 1.0 – 1.62 (Optical Zoom)F-number: 1.51 – 1.77Screen Size:Standard Size: Standard: 60” screen @ 180cm
Zoom : Wide: : 30” to 300” screen
(88 – 909cm)Throw Ratio Range: 1.41 – 2.26

Contrast Ratio:

Contrast Ratio: Over 5,000,000:1

Screen Size (Projected Distance):

Zoom : Wide: 40” to 500” screen (114 – 1,461cm)Standard Size: 60” screen @ 172cm

Geometric Correction:

Vertical/Horizontal Keystone: ±30° / ±30° (Zoom: Centre)Quick Corner: Yes (Manual)

Operating Altitude:

Operating Altitude: Over 1,500 m / 4,921 ft, with High Altitude Mode: 0 - 3,048 m (0 - 10,000 ft)

Start-Up Period:

Start-Up Period: Less than 9 seconds, Warm-up Period: 30 secondsQuick Start-Up: Quick Start-Up: Less than 5 seconds (Display)

Direct Power On/Off:

Direct Power On/Off: Yes

Air Filter:

Type: Electrostatic FilterMaintenance Cycle: 20,000 hours*2

Main Parts Specification:

LCD: 0.59” (C2Fine)
Resolution: WXGA (1280 x 800)Light Source: Type: Laser DiodeThrow Ratio: 1.41 – 2.26

Lightsource:

Type: Laser DiodeLife (Normal/Long): Life (Normal / Quiet / Extended): 20,000 / 20,000 / 30,000 hrs

Dimension (Not including protruding parts):

Open (D x W x H): 299 x 325 x 90 mmWeight: Approx. 4.1kg

Direct Power On / Off:

Direct Power On / Off: Yes

Optional Wireless & Built In Lan Specifications:

Supported Speed for each Mode: Access Point (Wi-Fi Direct): IEEE 802.11g (2.4GHz): 54Mbps5, IEEE 802.11n (2.4GHz): 72.2Mbps5, IEEE 802.11a (5GHz): 54Mbps5, IEEE 802.11n (5GHz): 150Mbps5, IEEE 802.11ac (5GHz): 325Mbps5Supported Security Type: WPA2-PSK (AES)Supported Mode: Access Point (Wi-Fi Direct)

Brightness:

Colour Light Output: 4,500lm*1White Light Output: 4,500lm / 3,100lm *1
See Full Specs Hide Full Specs
Print All Specs

Notes:

1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 No required maintenance for the light source for up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period.

3 For wireless functionality, including via the Epson iProjection App, the projector must be configured on a network, either through the Ethernet port on the projector (check model specifications for availability) or via a wireless connection. Check your owner’s manual to determine if a wireless LAN module must be purchased separately to enable a wireless connection. Not all Epson projectors are able to be networked. The Epson iProjection App does not support all files and formats.

4 Internet connection required for download. Data usage fee may apply.

5 These modes and actual data throughputs depend on supported wireless mode of source devices and/or environmental conditions.
