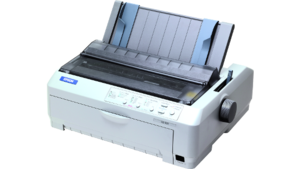

Epson LQ-590 Dot Matrix Printer

Just what your business need

Improved Efficiency, Proven Reliability

    • Speed: up to 440cps (10cpi)
      Prints up to 5-part forms
      Narrow Carriage
      Versatile paper paths
      Optional network connectivity





Improved Efficiency, Proven Reliability

  • Economical and Quiet
  • A proven durable print head
  • Genuine Epson ribbon cartridges lengthen the life of your printer
  • Sharp and clear
  • Easy network operation and monitoring
  • Printing Technology:


    Print Method: Impact dot matrixControl Panel: 6 switches and 10 LEDsPrint Direction: Bi-direction with logic seekingColour: BlackNumber of Pins in Head: 24

    Reliability:


    MVBF: 40 million lines (except print head)MTBF: 20000 POHPrinthead Life: 400 million strokes/ wire

    Print Characteristics:


    Character Sets: 14 international character sets
    13 character code tables Italic, PC437, PC850, PC860, PC861, PC863, PC865, Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15Bitmap Fonts: EPSON Draft, EPSON Roman, EPSON Sans Serif, EPSON Courier, EPSON Prestige, EPSON Script, EPSON OCR-B, EPSON Orator, EPSON Orator-S, EPSON Script CScalable Fonts: EPSON Roman, EPSON Sans Serif, EPSON Roman T, EPSON Sans Serif HBarcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

    Paper Path:


    Manual Insertion: Front/Rear insertionPush Tractor: Front/Rear insertionPull Tractor: Front/Rear/Bottom InsertionCut Sheet Feeder: Front/Rear Insertion

    Paper Media:


    Cut Sheet (Single Sheet): Width: 100 - 257mm (3.9" - 10.1")
    Length: 100 - 364mm (3.9" - 14.3")
    Thickness: 0.065 – 0.14mm (0.0025” - 0.0055”)Envelopes: No.6, No.10
    Thickness: 0.16 - 0.52mm (0.0063" - 0.0205")Continuous Paper (Single Sheet): Width: 101.6 - 254mm (4.0”-10.0”)
    Length: 101.6 - 558.8mm (4.0" - 22.0")
    Thickness: 0.065 – 0.39mm (0.0025” - 0.015”)Continuous Paper (Multi-part Forms): Width: 101.6 - 254mm (4.0”-10.0”)
    Length: 101.6 - 558.8mm (4.0" - 22.0")
    Thickness: 0.065 – 0.39mm (0.0025” - 0.015”)Labels: Base Sheet Thickness: 0.07 - 0.09mm (0.0028' - 0.0035")
    Total Sheet Thickness: 0.16 - 0.19mm (0.0063" - 0.0075")Line Spacing: 4.23mm(1/6inch) or programmable in increments of 0.0706mm(1/360 inch)

    Consumables:

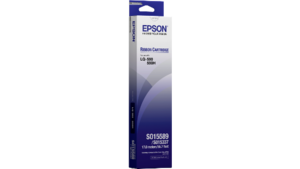

    Ribbon Cartridge Black: Approx. 5 million characters

    Environmental Conditions (Operating):


    Temperature: 5 ~ 35°CHumidty: 10 ~ 80°C

    Acoustic Noise:


    Acoustic Noise: 52 dB(A) (ISO7779 pattern)

    Input Data Buffer:


    Input Data Buffer: 128 KByte
