24-Pin Dot Matrix Printers Epson LQ-2090
Discontinued

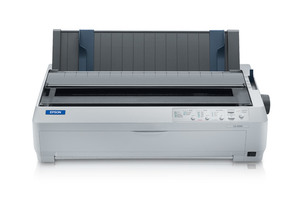

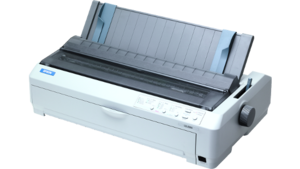

Epson LQ-2090 Dot Matrix Printer

Zoom In
Epson LQ-2090 Dot Matrix Printer
Epson LQ-2090 Dot Matrix Printer
Epson LQ-2090 Dot Matrix Printer
Epson LQ-2090 Dot Matrix Printer

Just what your business need

Unsurpassed Paper Handling Flexibility

    • Wide Carriage
      Speed: up to 440cps (10cpi)
      Prints up to 5-part forms
      Versatile paper paths
      Optional network connectivity





Find Accessories Support FIND INK
REPLACEMENT PRODUCT :
Epson LQ-2090IIN Dot Matrix Printer
Epson LQ-2090IIN Dot Matrix Printer
Model: View Main Product Page Learn More

Unsurpassed Paper Handling Flexibility

  • Sharp and clear
  • Convenient and easy connectivity
  • Genuine Epson ribbon cartridges lengthen the life of your printer
  • Load paper from the front, rear, bottom or top

    • Printing Technology:

    Print Method: Impact dot matrixControl Panel: 6 switches and 10 LEDsPrint Direction: Bi-direction with logic seekingColour: BlackNumber of Pins in Head: 24 pins

    Print Characteristics:

    Character Sets: 14 international character sets
    13 character code tables
    Italic, PC437, PC850, PC860, PC861, PC863, PC865, Abicomp, BRASCII, Roman 8, ISO Latin 1, PC858, ISO 8859-15Bitmap Fonts: EPSON Draft: 10 CPI, 12 CPI, 15 CPI
    EPSON Roman: 10 CPI, 12 CPI, 15 CPI, Proportional
    EPSON Sans Serif: 10 CPI, 12 CPI, 15 CPI, Proportional
    EPSON Courier: 10 CPI, 12 CPI, 15 CPI
    EPSON Prestige: 10 CPI, 12 CPI
    EPSON Script: 10 CPI
    EPSON OCR-B: 10 CPI
    EPSON Orator: 10 CPI
    EPSON Orator-S: 10 CPI
    EPSON Script C: ProportionalScalable Fonts: EPSON Roman: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
    EPSON Sans Serif: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
    EPSON Roman T: 10.5 pt., 8 pt. - 32 pt. (every 2 pt.)
    EPSON Sans Serif H: 10.5 pt., 8 pt. - 32 pt. (every 2pt.)Barcode: EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET

    Paper Path:

    Manual Insertion: Front/Rear insertionPush Tractor: Front/Rear insertionPull Tractor: Front/Rear/Bottom InsertionCut Sheet Feeder: Front/Rear Insertion

    Paper Media:

    Cut Sheet (Single Sheet): Width: 100-420mm (3.9" -16.5")
    Length: 100-420mm (3.9" -16.5")
    Paper Thickness: 0.065 - 0.14 mm (0.0025" - 0.0055")Cut Sheet (Multi-part Sheet): Paper Thickness: 0.12 - 0.39 mm (0.0047" - 0.015")Envelopes: No.6, No.10
    Paper Thickness: 0.16 - 0.52 mm (0.0063" - 0.0205")Continuous Paper (Single Sheet): Width: 101.6 - 406.4mm (4.0”-16.0”)
    Length: 101.6 - 558.8mm (4.0" - 22.0")
    Paper Thickness: 0.065 - 0.39 mm (0.0025" - 0.015")Continuous Paper (Multi-part Forms): Width: 101.6 - 406.4mm (4.0”-16.0”)
    Length: 101.6 - 558.8mm (4.0" - 22.0")
    Paper Thickness: 0.065 - 0.39 mm (0.0025" - 0.015")Labels: Base Sheet Thickness: 0.07 - 0.09mm (0.0028' - 0.0035")
    Total Sheet Thickness: 0.16 - 0.19mm (0.0063" - 0.0075")Line Spacing: 4.23mm(1/6 inch) or programmable in increments of 0.0706mm(1/360 inch)

    Consumables:

    Ribbon Cartridge Black: Type: Fabric
    Ribbon Life: Approx. 8 million characters

    Environmental Conditions (Operating):

    Temperature: 5 - 35°CHumidty: 10 - 80%

    Acoustic Noise:

    Acoustic Noise: 52 dB(A) (ISO7779 pattern)

    Input Data Buffer:

    Input Data Buffer: 128 KByte
