For Work 3LCD Laser Light Source Epson EB-L1075U
Discontinued

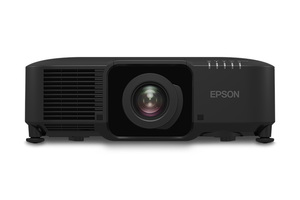

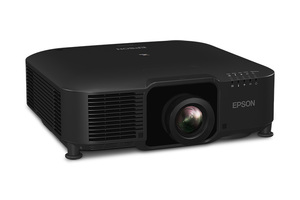

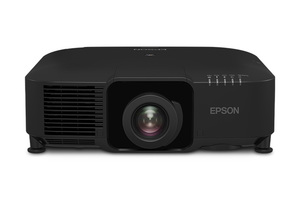

EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement

Zoom In
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement
EB-L1075U WUXGA 3LCD Laser Projector with 4K Enhancement

Large-venue projector with 4K Enhancement Technology

This 7,000 lumens installation projector, with interchangeable lenses and laser image quality which allows the user to choose the most appropriate lens from Epson's wide range. With flexible installation, low maintenance, and a modern and compact design, this laser projector can be used in a range of large venues.

      • WUXGA (1920 x 1200) with 4K Enhancement1
      • White and Colour Brightness at 7,000lm2
      • 11 interchangeable Epson lenses
      • Maintenance-free operation for up to 20,000 hours3



Support
Superior image quality
The EB-L1075U projects clear whites, vivid details, deep blacks, defined shadows and high contrast imagery.

Flexible installation
The compact, unobtrusive design allows this projector to blend seamlessly into most environments. Its 360 degree usage arc and tilt-free technology, mean you can project in any direction.

Interchangeable lenses
Just as a specific scenario dictates which camera lens is most appropriate to use – the same is true with different projection environments. That's why we've designed our projector body to accommodate different lenses. There are 11 interchangeable Epson lenses available, covering short to long-throw projection.

Reliable
Epson has developed a 'maintenance-free light source' alternative laser projector range that's truly fit-and-forget.

What's in the box:

  • EB-L1075U projector
  • a lens
  • power cable
  • cable cover
  • projector remote control with batteries
  • Quick Setup Sheet

Projection Technology:

Projection Technology: 3LCD Technology

Main Parts Specification:

LCD: 0.76 inch with C2 FineVideo Output: 4K enhancementLight Source: Laser

Brightness1:

Colour Light Output: 7,000 Lumen- 4,900 Lumen (economy) in accordance with IDMS15.4Portrait Mode: 7,000 lmWhite Light Output: 7,000 Lumen - 4,900 Lumen (economy) in accordance with ISO 21118:2012

Connectivity:

Security Features: Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Password protectionInterface: USB 2.0 Type B (Service Only), RS-232C, Wired Network, Wireless Network (2x), VGA in, VGA out, DVI in, HDMI in, BNC in, HDBaseT, Stereo mini jack audio out, Stereo mini jack audio in (3x), HDMI (HDCP 2.2), Wireless LAN IEEE 802.11b/g/n (WiFi 4) (optional)

Projection Lens:

Focal Length: 24 mm - 38.2 mmF-number: 1.7 - 2.3Lens Shift: Motorized - Vertical ± 67 %, horizontal ± 30 %Screen Size: 50 inches - 1,000 inchesZoom: Motorized, Factor: 1 - 1.6

Contrast Ratio:

Contrast Ratio: Over 2,500,000 : 1

Screen Size (Projected Distance):

Zoom : Wide: 1.5 m - 31.6 m ( 50 inch screen)Zoom : Tele: 2.5 m - 50.4 m ( 50 inch screen)

Geometric Correction:

Vertical/Horizontal Keystone: Manual vertical: ± 45 °, Manual horizontal ± 30 °

External Control Pad Specification:

Dimension: 545‎ x 436 x 164 mm (Width x Depth x Height)Weight: 16.9 kg

LCD:

Native Resolution: WUXGA, 1920 x 1200, 16:10
See Full Specs Hide Full Specs
Print All Specs

Notes:

1 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution and surpass Full HD image quality.

2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

3 No required maintenance for the light source and filter up to 20,000 hours. Approximate time until brightness decreases 50% from first usage. Measured by acceleration test assuming use of 0.04 - 0.20 mg/m3 of particulate matter. Time varies depending on usage conditions and environment. Replacement of parts other than the light source may be required in a shorter period. The projector has a limited warranty of three years or 20,000 hours, whichever comes first.
