Smart Glasses Epson Moverio BT-350
Discontinued

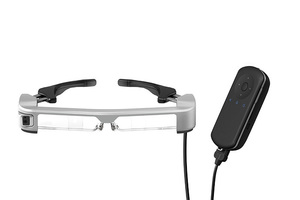

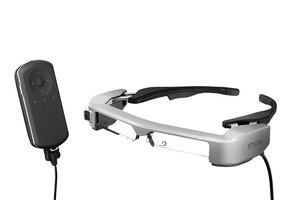

Moverio BT-350 Smart Glasses

Adjustable, highly transparent smart glasses for multi-user applications.

Designed for multi-user applications, Moverio BT-350 smart glasses feature an adjustable design, made to fit multiple sizes. With included admin software1 and an optional USB dock, management of multiple devices is easy. Ideal for indoor and outdoor use, these highly transparent glasses redefine augmented reality (AR) with a groundbreaking Si-OLED display. Motion-tracking sensors and a high-resolution camera make it ideal for 360-degree apps. The binocular display enables stereoscopic content too. With wireless and Bluetooth® Smart (BLE) connectivity, the BT-350 supports multiple accessories.


  • Innovative design — durable hinge design accommodates a wide range of user head sizes

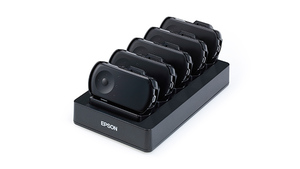

  • Designed for multi-user applications — Epson Moverio Admin (EMA) device management software1 and optional USB dock (holds up to five devices) enables scalable implementation
  • Ideal for both indoor and outdoor use — built-in flip-up shade makes it easy
  • Hands-free operation — head tracking and gesture control support hands-free user interfaces; includes neck strap and controller pouch
  • Ideal platform for developing AR apps — seamlessly blend digital content into the world around you with highly transparent Si-OLED display
  • Packed with sensors — motion-tracking sensors, plus front-facing high-resolution camera make it ideal for 360-degree AR apps
  • Dual (binocular) displays — each lens has its own display, in your field of vision, projected into your surroundings; ideal for stereoscopic 3D content
  • Enhanced connectivity — dual-band wireless connectivity and Bluetooth Smart (BLE) enable integration with a wide range of accessories
  • Portable — rechargeable battery (in controller) offers up to six hours of battery life2; built-in card slot supports removable microSDHC cards up to 32GB

What's in the box:

AC Adapter
USB Cable
Carrying Pouch
Flip-up shade unit x 1
Neck strap
USB attachment for Option Magnet case
User Manual

Wearable Device Details:


Model Type: See-Through Binocular Smart GlassesBattery Life: Approx. 6 hoursBattery Type: Lithium Polymer battery 2950 mAhWater Proof: Headset: Water proof against light rain (IPX-2)
Controller: Water proof with a casing (IPX-2)Dimensions Headset: 193.5 x 181 x 30.5 mm (without shade)Dimensions Controller: 56 x 23 x 116 mmWeight Headset: 119 g (without shade / without cable)Weight Controller: 129 gOperating Temperature: 5 °C to 35 °C, 20 % to 80 % humidity (no condensation)Storage Temperature: -10 °C to 60 °C, 10 % to 90 % humidity (no condensation)Power Supply Voltage Controller: 5 V DC (900 mA) via micro USB terminalPower Supply Voltage AC Adapter: 100 to 240 V AC +/- 10 %, 50 to 60 Hz with micro USB cable, 0.15 A

Optical:


Display Device Type: Si-OLED (Silicon - Organic Light-Emitting Diode)Driving Method: Mono Crystalline Silicon Active MatrixRefresh Rate: 30 HzField of View: 23 ° (Diagonal)Screen Size (Projected Distance): 40-inch at 2.5 m, 320-inch at 20 mDisplay Size: 0.43" inch wide panel (16:9)Pixel Number: 921,600 pixels (1280 x 720)

Sensors:


Camera - Image Capturing: 5MPGPS: Yes, in ControllerCompass: Yes, 3-axis in both Headset and ControllerGyroscope: Yes, 3-axis in both Headset and ControllerAccelometer: Yes, 3-axis in both Headset and ControllerAmbient Light Sensor: Yes (10 - 30,000 lux)

CPU and Memory:


CPU: Intel Atom x 5 1.44 GHz Quad CoreRAM: 2 GB

User Interface:


Touch pad Pointing Method: Capacitive Multi-touch (Relative coordinate mode & absolute coordinate mode)Function Key: Direction Control Key: Up, Down, Left, Right, Enter-OK

Supported File Formats:


Video: MP4 (MPEG4 / H.264 + AAC), MPEG2 (H.264 + AAC), VP8Picture: JPEG, PNG, BMP, GIFAudio: WAV, MP3, AAC3D Supports: Side-by-side

Sound Output:


Maximum Audio Output Level: 150 mV

Connectivity:


USB Interface: Micro USB type B, USB 2.0 (device/host)Network: IEEE 802.11 a/b/g/n/ac with Wi-Fi certified
WiFi Miracast(Source/Sink)
Modulation: OFDM, DSSSBluetooth: Bluetooth Smart Ready Class2 (2.5 mW, 10m), V4.1 (HSP / A2DP / HID / OPP / SPP / AVRCP / PAN)SD Card Slot: Embedded microSDHC (32 GB / Class 10)
